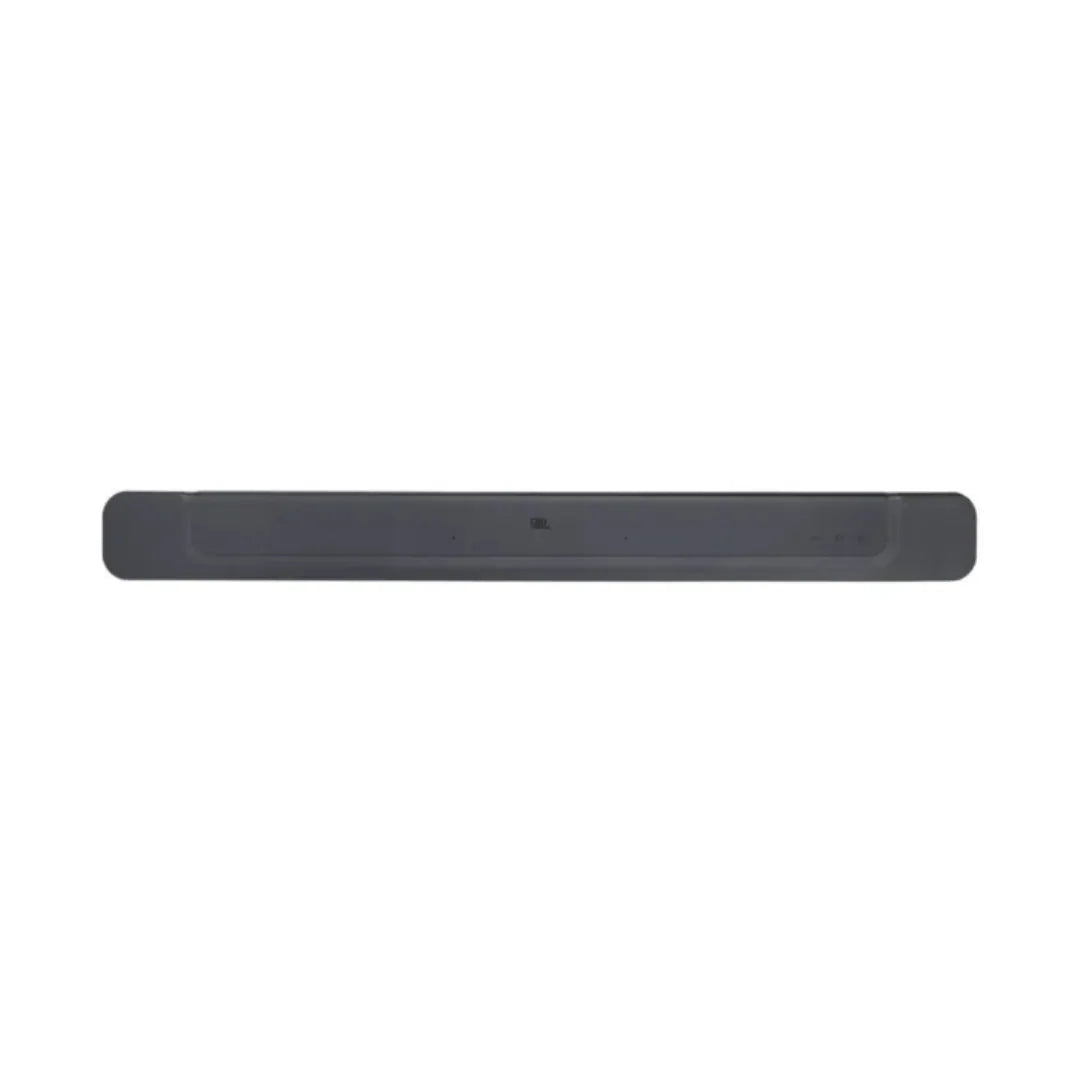

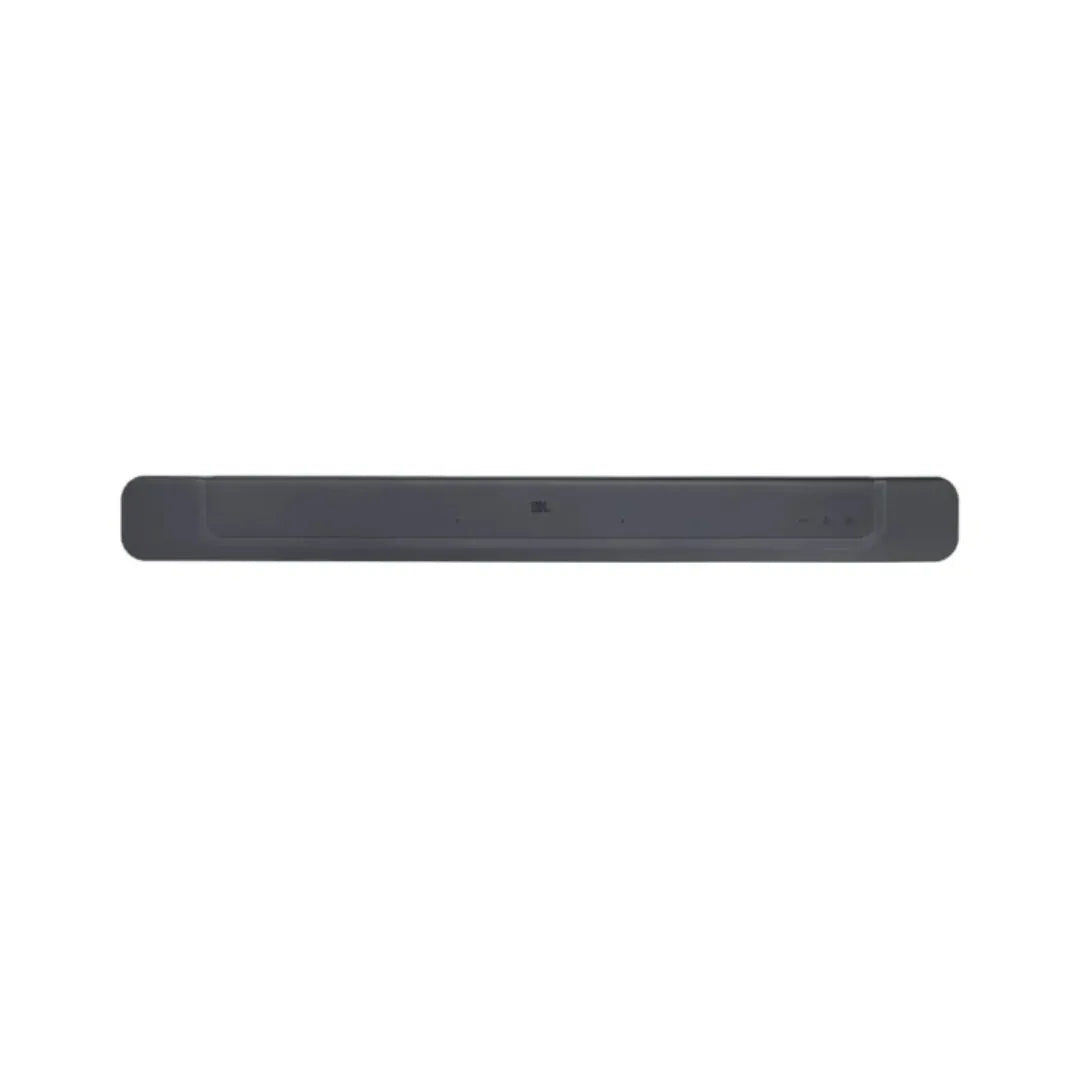

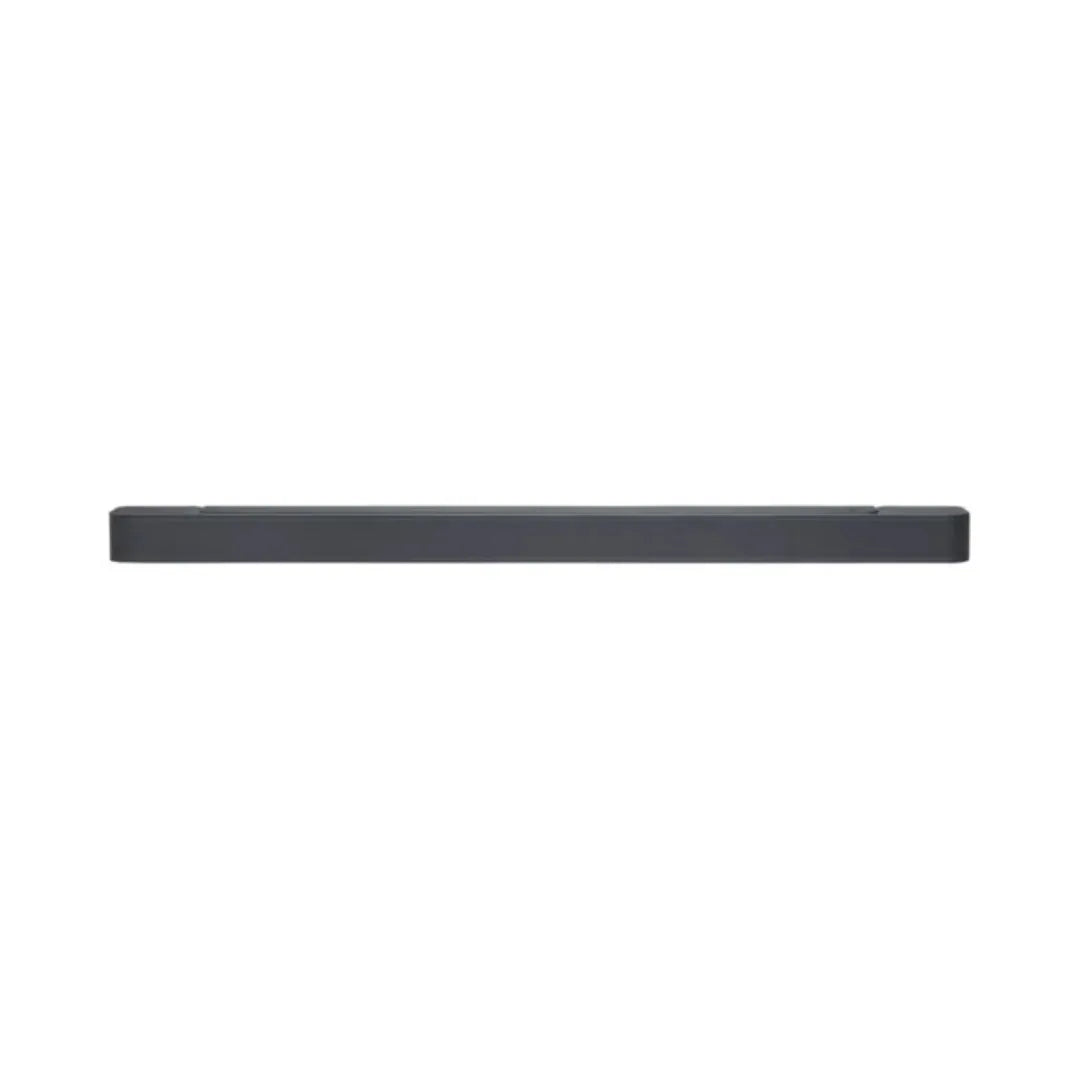

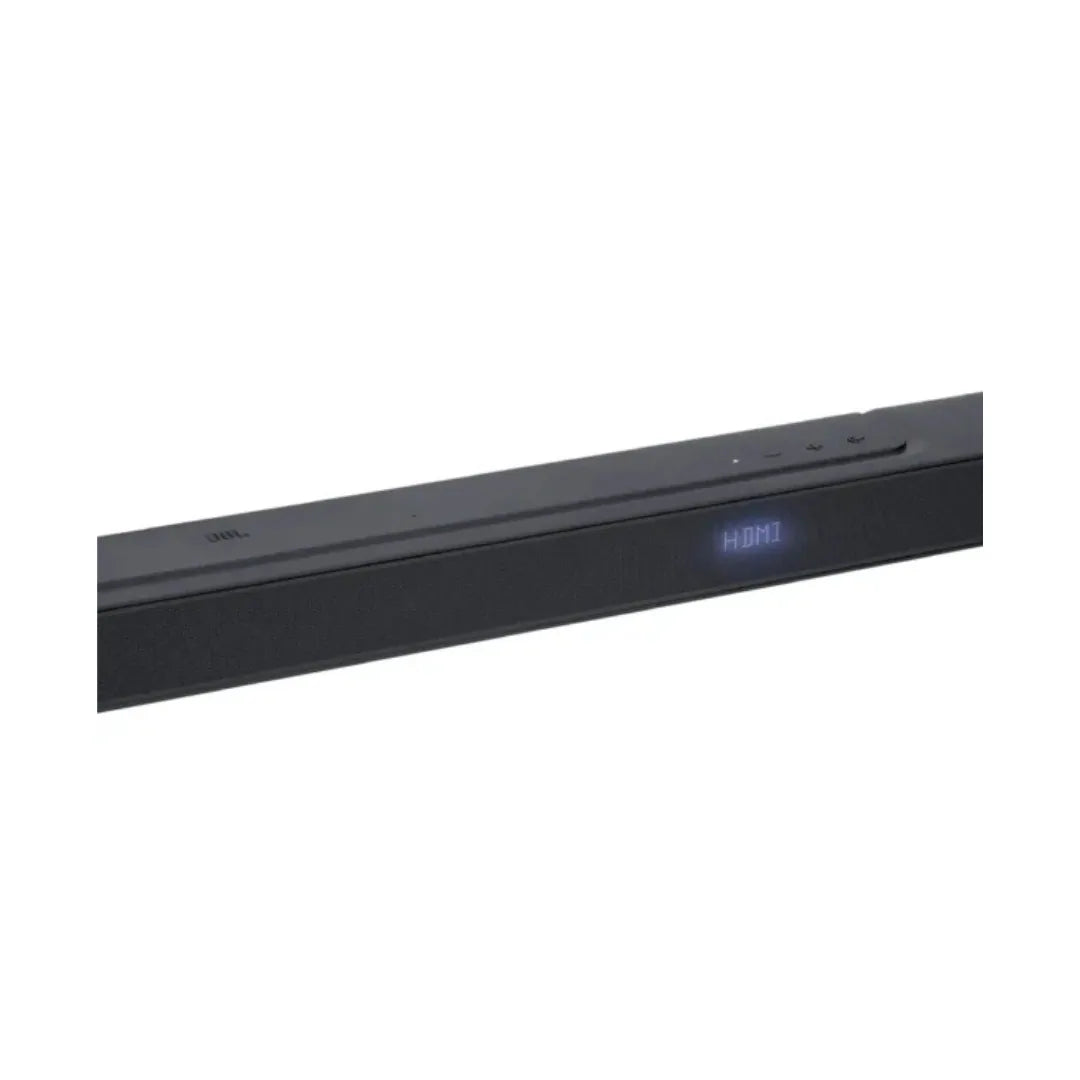

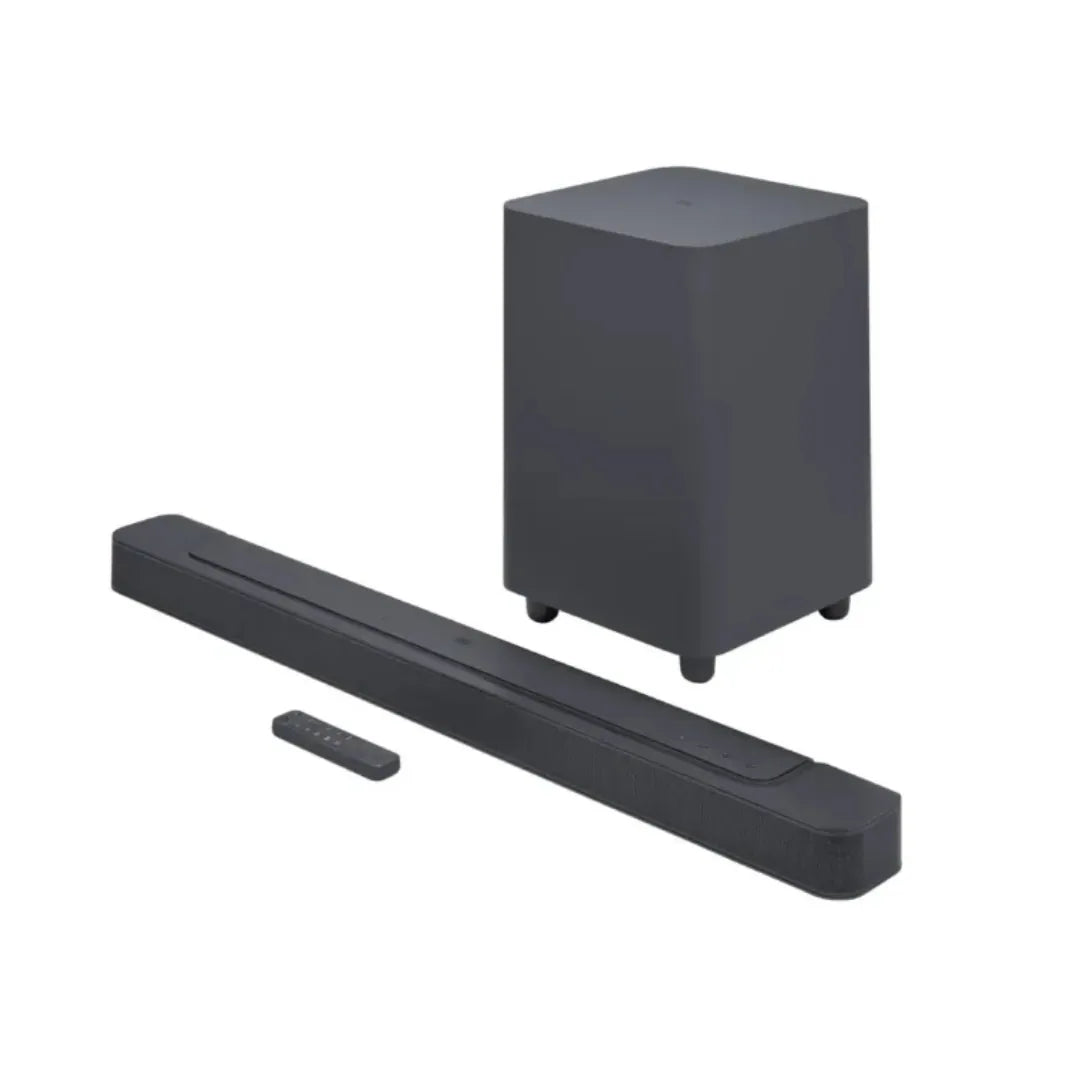

JBL Bar 500 Dolby Atmos 5.1 Channel Soundbar

JBL Bar 500 Dolby Atmos 5.1 Channel Soundbar Features: General Specifications Power Supply: 100–240V AC, ~50/60Hz Networked Standby Power: < 2.0 W Operating Temperature: 0°C – 45°C Audio Specifications Total Speaker Power Output (Max @THD...

SKU: 2474

Category: JBL Sound System, LED TV & AUDIO, Sound System

Vendor:JBL

Orders ship within 24 Hours.

JBL Bar 500 Dolby Atmos 5.1 Channel Soundbar Features:

General Specifications

  • Power Supply: 100–240V AC, ~50/60Hz
  • Networked Standby Power: < 2.0 W
  • Operating Temperature: 0°C – 45°C

Audio Specifications

  • Total Speaker Power Output (Max @THD 1%): 590W
  • Soundbar Output Power (Max @THD 1%): 290W
  • Subwoofer Output Power (Max @THD 1%): 300W
  • Soundbar Transducers: 4× (46×90)mm racetrack drivers, 3× 0.75″ (20mm) tweeters

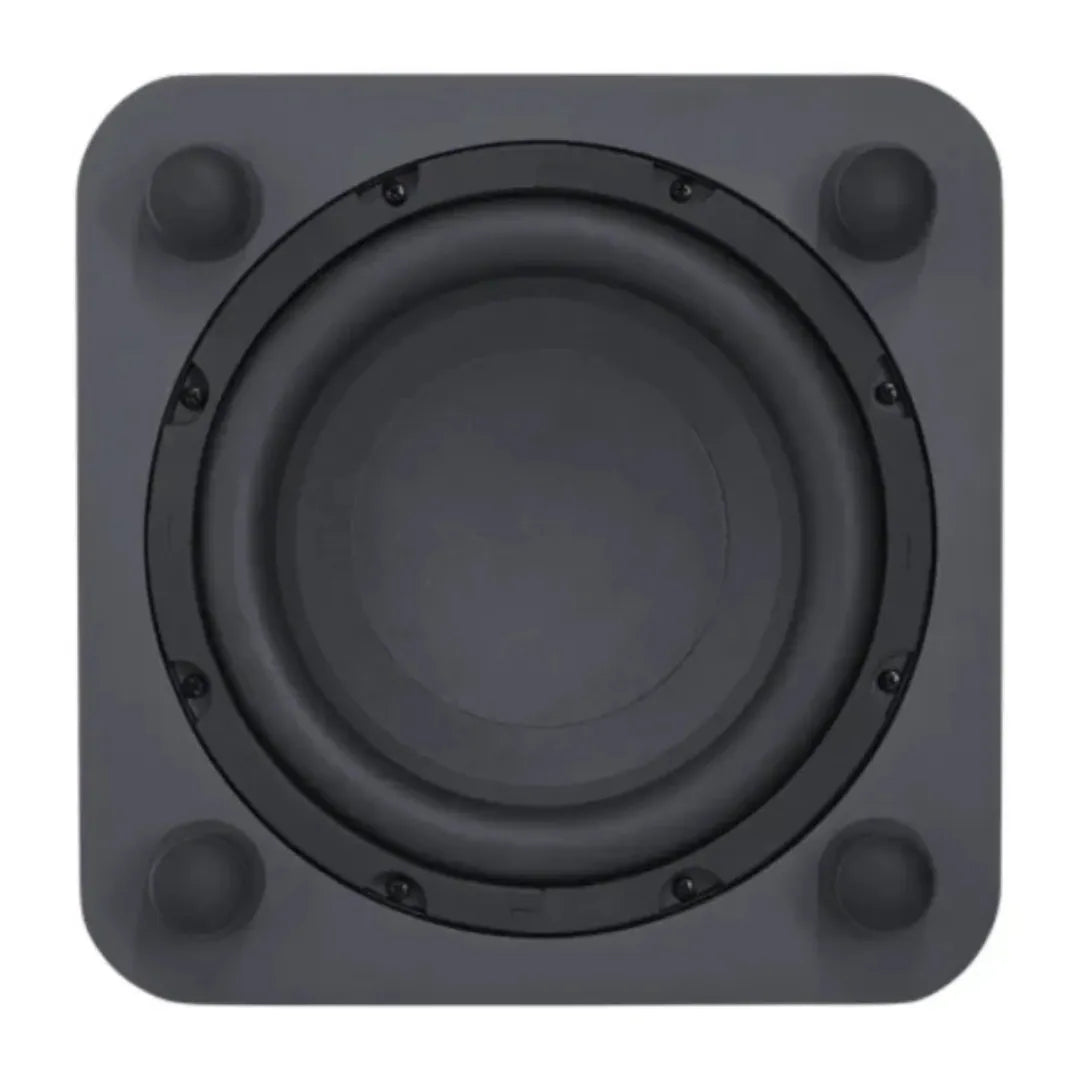

  • Subwoofer Transducer: 10” (260mm)
  • Frequency Response: 35Hz – 20kHz (-6dB)
  • Audio Inputs: 1 Optical, Bluetooth, USB (USB playback available in US version; others for service only)

Dimensions & Weight

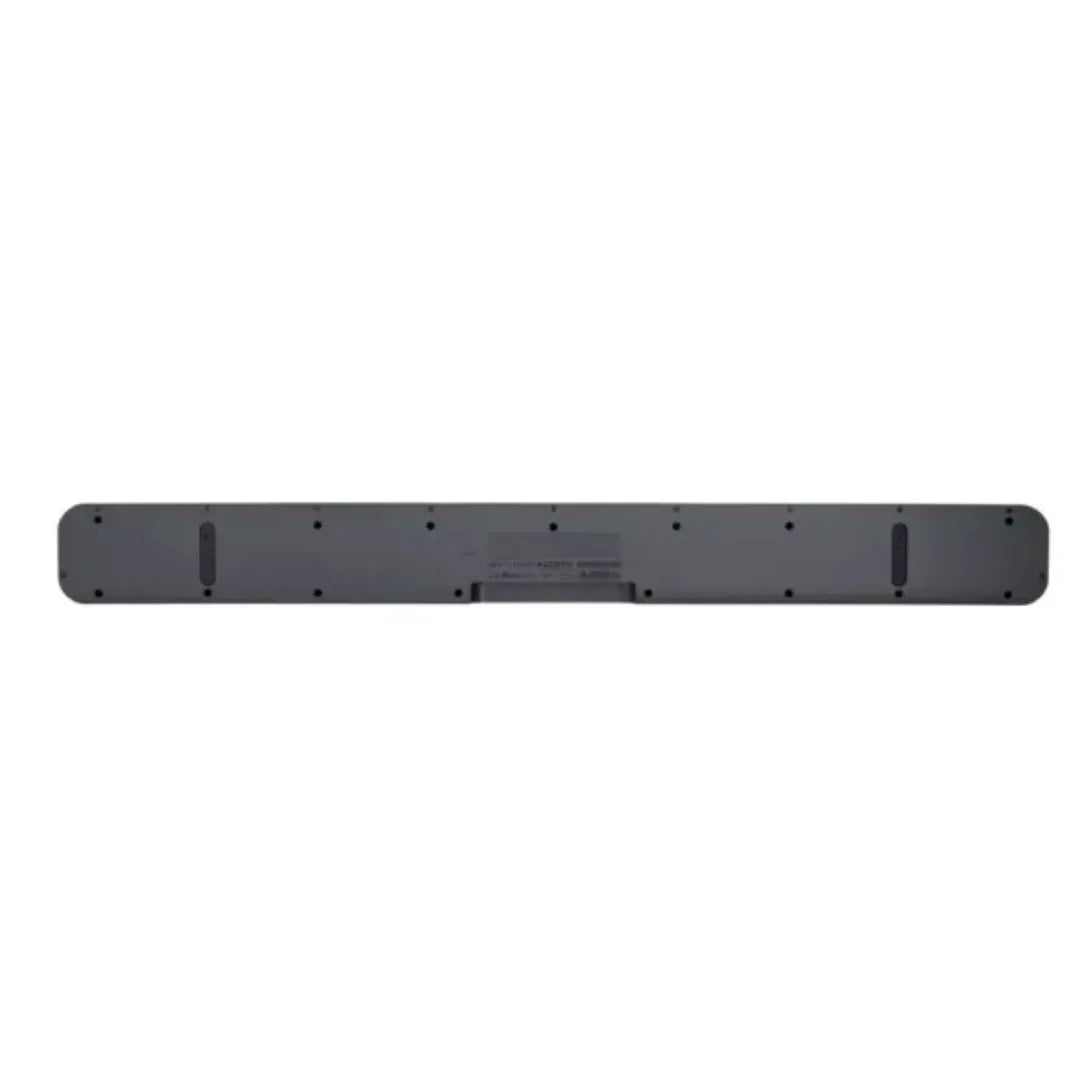

  • Soundbar (W×H×D): 1017 × 56 × 103.5 mm / 40” × 2.2” × 4”

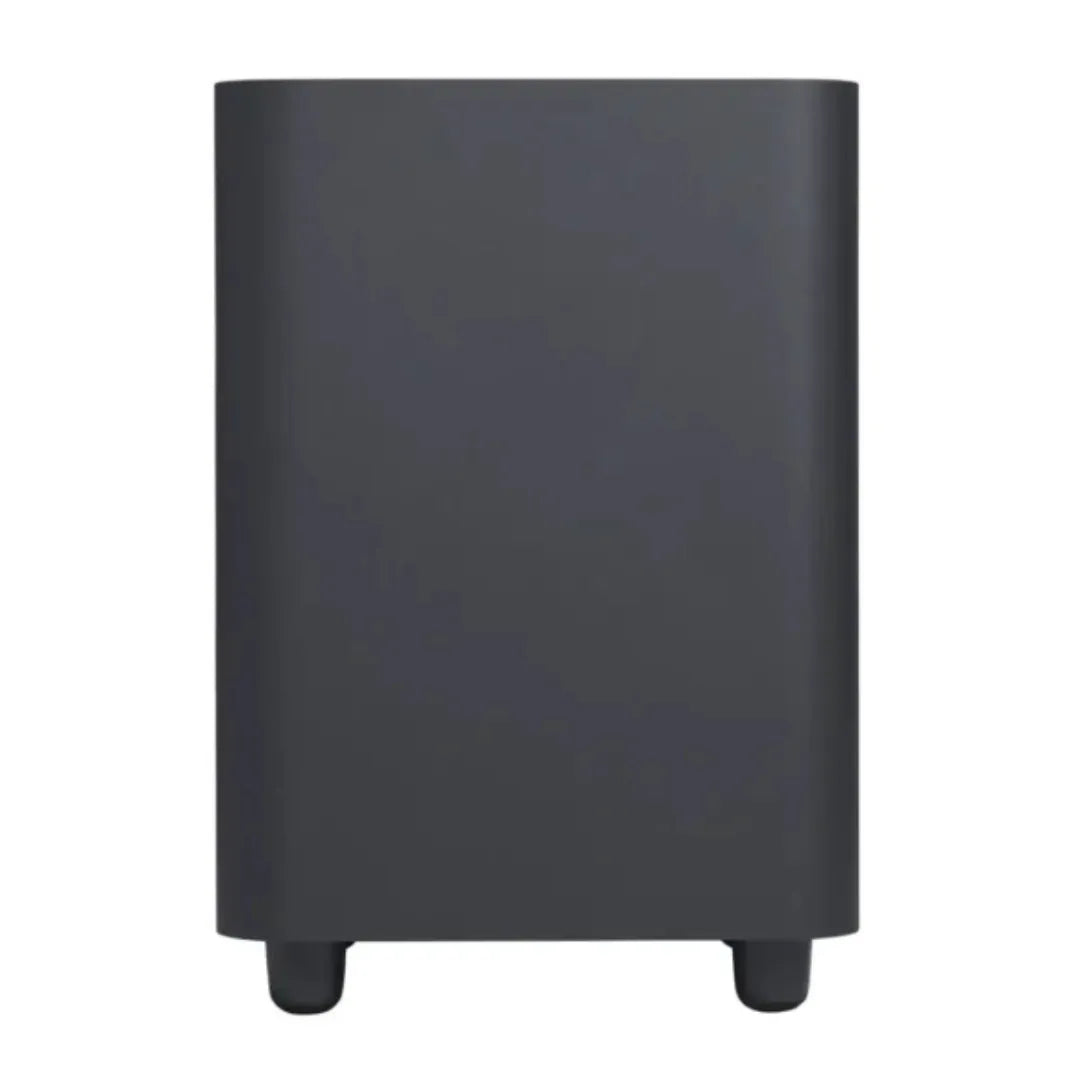

  • Subwoofer (W×H×D): 305 × 440.4 × 305 mm / 12” × 17.3” × 12”
  • Soundbar Weight: 2.8 kg / 6.2 lbs
  • Subwoofer Weight: 10 kg / 22 lbs
  • Packaging Dimensions (W×H×D): 1105 × 370 × 475 mm / 43.5” × 14.6” × 18.7”
  • Packaging Weight: 16.2 kg / 35.6 lbs

Control & Connection Specifications

  • USB Port: Type-A
  • USB Rating: 5V DC, 0.5A
  • Supported File Format: MP3
  • MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
  • MP3 Sampling Rate: 16 – 48 kHz
  • MP3 Bitrate: 80 – 320 kbps
  • Bluetooth Version: 5.0
  • Bluetooth Profile: A2DP 1.2, AVRCP 1.5
  • Bluetooth Frequency Range: 2400 MHz – 2483.5 MHz
  • Bluetooth Transmitter Power: < 15 dBm (EIRP)
  • Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
  • 2.4G Wi-Fi Frequency Range: 2412 – 2472 MHz
  • 2.4G Wi-Fi Power: < 20 dBm (EIRP)
  • 5G Wi-Fi Frequency Range: 5.15 – 5.825GHz
  • 5G Wi-Fi Power: 5.15–5.25GHz <23dBm; 5.25–5.35GHz & 5.47–5.725GHz <20dBm; 5.725–5.825GHz <14dBm
  • 2.4G Wireless Frequency Range: 2406 – 2474 MHz
  • 2.4G Wireless Power: < 10 dBm (EIRP)

Video Specifications

  • HDMI Video Input: 1
  • HDMI Video Output (with eARC): 1
  • HDMI HDCP Version: 2.3
  • HDR Pass Through: HDR10, Dolby Vision



The JBL Bar 500 is a powerful 5.1-channel soundbar system built for cinematic audio in a compact, elegant design. With 590 watts of total output (290 W for the soundbar + 300 W for the wireless subwoofer) you’ll feel and hear bass-rich, room-filling sound.
Featuring true Dolby Atmos® 3D surround sound and JBL’s MultiBeam™ technology, the Bar 500 immerses you in audio from every direction without needing additional rear speakers.

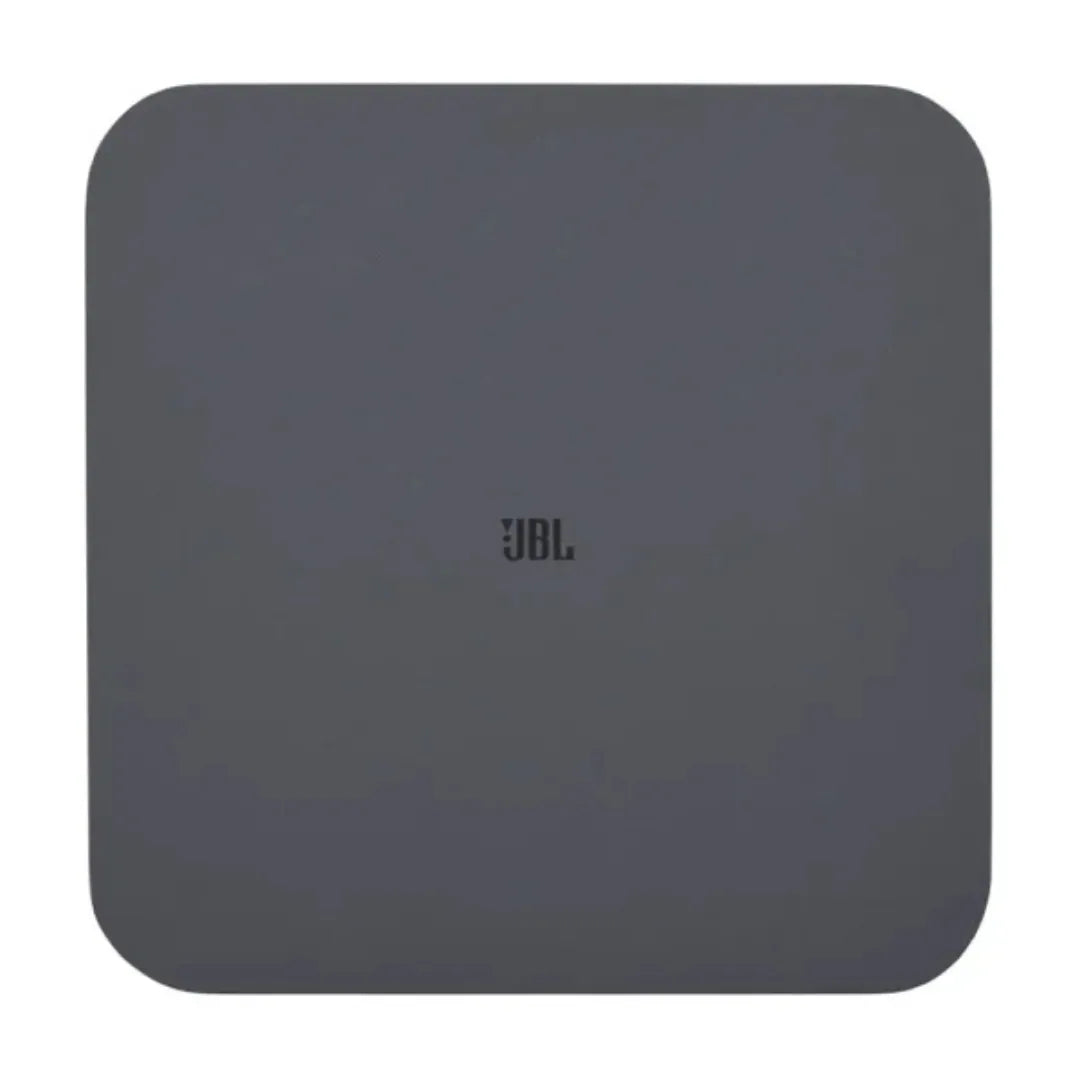

The system includes a 10-inch wireless subwoofer for deep bass impact, and supports smart features like built-in WiFi (AirPlay, Chromecast) and voice assistant compatibility for seamless streaming and control.
