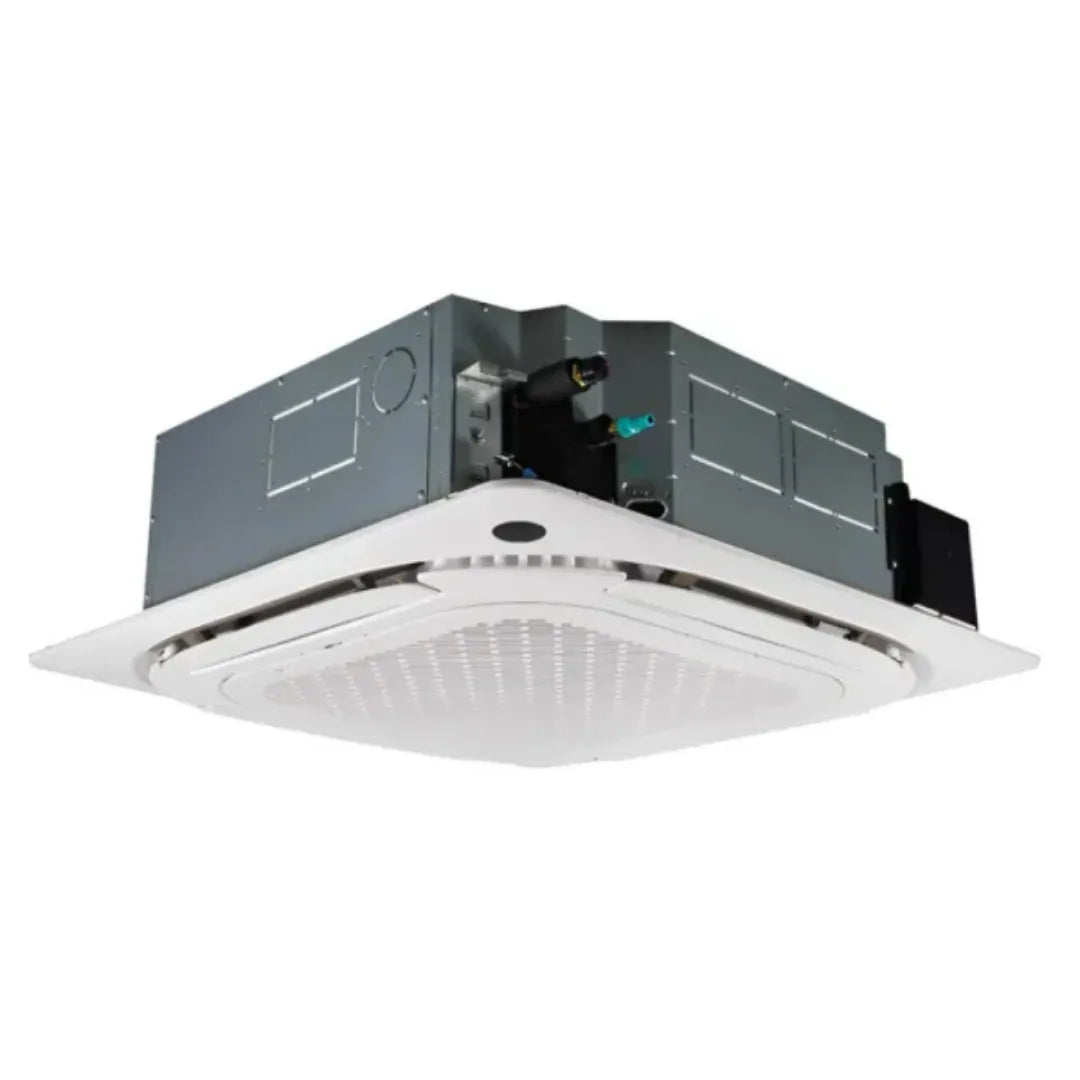

- Midea MCD1-48HRDN1-QW 4 Ton Inverter Ceiling Cassette
Description
Midea MCD1-48HRDN1-QW Key Features:
- Cooling Capacity 4 Ton
- (Cooling, Btu/hr) 48,000
- Display On/Off Yes
- Beep On/Off Yes
- 24-Hour Timer Yes
- Power Input: 0.96kW (Cooling) / 1.00kW (Heating)
- Operating Current: 4.4A (Cooling) / 4.5A(Heating)
- Indoor Unit: MCA3-12HRFN1-Q
- Outdoor Unit: MOUC-12HFN1-Q
- R410A Refrigerant
- Blue Fin
- Sine-Wave Inverter
- Aluminum heat exchanger with hydrophilic coating
- Built-in drain pump
- Wired remote control for indoor unit
- Compressor DC inverter
- Wi-Fi Control (Wi-Fi stick)
- 360°Air Flow Panel
- Night Mode
- The mixing of fresh air
- Redirecting the flow of air to neighboring rooms using air ducts
- Dry Mode
- Multi-Bend Heat Exchanger
Power
- Cooling Power: 3.520 … 13.600
- Heating Capacity: 4.100 … 16.000
Power consumption
- Cooling: 0.900 … 5.600
- Heating: 0.950 … 5.500
Energy Efficiency Ratio
- SEER (cooling mode): 6.10
- SCOP (heating mode): 4.00 … 5.00
- EER (сooling mode): 2.48
- COP (heating mode): 3.05
Outdoor Unit Model
- Model Name: MOU1-48HDN1-RW
- Compressor Type: Inverter
- Compressor: GMCC Rotary DC
Refrigerant (Freon)
- Freon Type: R410A
- Freon Weight: 3.65 kg
Power Options
-
Voltage/Hz/Phase: 380/50/3
Performance
- Air Flow Rate: 5,000 m³/h
- Noise Level: 64.50 dB
Piping
- Liquid Pipe Diameter: 9.52 mm
- Gas Pipe Diameter: 15.90 mm
- Minimum Length of Main Line: 3 m
- Maximum Length of Main Line: 50 m
- Maximum Vertical Drop: 30 m
Dimensions & Weight
- Dimensions (Without Package): 946 x 810 x 410 mm
- Dimensions (With Package): 1090 x 885 x 500 mm
- Net Weight: 86.70 kg
- Gross Weight: 91.40 kg
The Midea MCD1-48HRDN1-QW 4 Ton Inverter Ceiling Cassette AC is engineered to deliver powerful and efficient cooling for extra-large spaces such as halls, offices, restaurants, and commercial areas. With inverter technology, it reduces energy consumption while maintaining consistent temperature control.
Its ceiling cassette design is sleek and space-saving, ensuring modern installation that blends seamlessly into any interior. Featuring 4-way airflow, turbo cooling, and eco-friendly refrigerant, this AC guarantees rapid comfort, wide coverage, and long-term durability.
